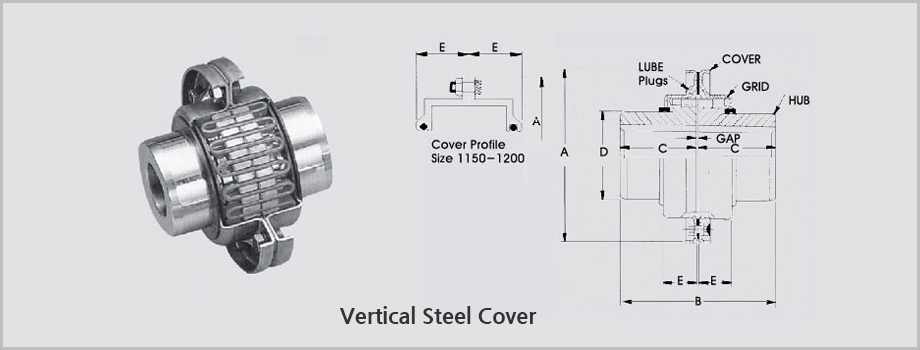

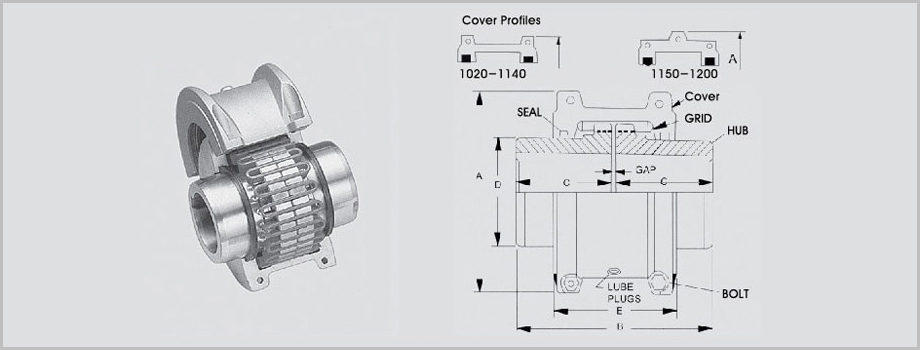

HOME > 카플링 > 그리드 카플링   카플링   기어드 카플링   디스크 카플링   그리드 카플링   플랜시 프랙스 카플링     SH     SH Dimensions Size Max. Speed (rpm) Basic Torque (kg*m) Bore dia. (mm) Dimensions(mm) Gap(mm) Cplg wt (kg) Lube wt(kg) Max. Min. A B C D E Min. Normal Max. 1020 4,500 486 30 12 101.6 98.0 47.5 39.7 66.5 1.5 3 4.5 1.9 0.03 1030 4,500 1,383 35 12 110.0 98.0 47.5 49.2 68.3 1.5 3 4.5 2.6 0.03 1040 4,500 2,304 43 12 117.5 104.6 50.8 57.1 70.0 1.5 3 4.5 3.4 0.05 1050 4,500 4,033 50 12 138.0 123.6 60.3 66.7 79.5 1.5 3 4.5 5.4 0.05 1060 4,350 6,337 55 19 150.5 130.0 63.5 76.2 92.0 1.5 3 4.5 7.3 0.09 1070 4,125 9,217 65 19 161.9 155.4 76.2 87.3 95.0 1.5 3 4.5 10 0.11 1080 3,600 19,010 78 27.0 194.0 180.8 87.3 104.8 116.0 1.5 3 4.5 18 0.17 1090 3,600 34,564 95 27.0 213.0 199.8 104.8 123.8 122.0 1.5 3 6 25 0.25 1100 2,400 58,183 107 41 250.0 245.7 123.8 142.0 155.5 1.5 4.5 6 42 0.43 1110 2,250 86,411 117 41 270.0 258.5 142.0 160.3 161.5 1.5 4.5 9.5 54 0.51 1120 2,025 126,736 136 60 308.0 304.4 160.3 179.4 191.5 1.5 6 9.5 81 0.73 1130 1,800 184,343 165 67 346.0 329.8 179.4 217.5 195.0 1.5 6 12.5 121 0.91 1140 1,650 264,993 184 67 384.0 371.6 217.5 254.0 201.0 1.5 6 12.5 178 1.13 1150 1,500 368,686 203 108 453.1 371.8 254.0 269.2 271.3 1.5 6 12.5 234 1.95 1160 1,350 518,465 228 120.7 501.4 402.2 269.2 304.8 278.9 1.5 6 12.5 317 2.81 1170 1,225 691,286 279 133.4 566.4 437.8 304.8 355.6 304.3 1.5 6 12.5 448 3.49 1180 1,100 958,584 311 152.4 629.9 483.6 321.1 393.7 321.1 1.5 6 12.5 619 3.76 1190 1,050 1,267,358 339 152.4 675.6 524.2 325.1 436.9 325.1 1.5 6 12.5 776 4.40 1200 900 1,728,216 361 177.8 756.9 564.8 355.6 497.8 355.6 1.5 6 12.5 1,057 5.62 ※ Coupling 중량은 내경 가공이 없는 상태의 수치임. ※ Coupling weight, with unbored hub assembly.       SV     SV Dimensions Size Max. Speed (rpm) Basic Torque (kg*m) Bore dia. (mm) Dimensions(mm) Gap(mm) Cplg wt (kg) Lube wt(kg) Max. Min. A B C D E Min. Normal Max. 1020 6,000 486 30 12.7 111.1 98.0 47.5 39.7 24.2 1.5   4.5 2.0 0.03 1030 6,000 1,383 36 12.7 110.0 98.0 47.5 49.2 25.0 1.5 3 4.5 2.6 0.03 1040 6,000 2,304 44 12.7 117.5 104.6 50.8 57.1 25.7 1.5 3 4.5 3.4 0.05 1050 6,000 4,033 50 12.7 138.0 123.6 60.3 66.7 31.2 1.5 3 4.5 5.4 0.05 1060 6,000 6,337 57 19.1 150.5 130.0 63.5 76.2 32.2 1.5 3 4.5 7.3 0.09 1070 5,500 9,217 65 19.1 161.9 155.4 76.2 87.3 33.7 1.5 3 4.5 10.4 0.11 1080 4,750 19,010 79 27.0 194.0 180.8 88.9 104.8 44.2 1.5 3 4.5 17.7 0.17 1090 4,000 34,564 95 27.0 213.0 199.8 98.4 123.8 47.7 1.5 3 6 25.4 0.25 1100 3,250 58,183 107 41.3 250.0 245.7 120.6 142.0 60.0 1.5 4.5 6 42.2 0.43 1110 3,000 86,411 117 41.3 270.0 258.5 127.0 160.3 64.2 1.5 4.5 9.5 54.4 0.51 1120 2,700 126,736 136 60.3 308.0 304.4 149.2 179.4 73.4 1.5 6 9.5 81.6 0.73 1130 2,400 184,343 165 67.7 346.0 329.8 161.9 217.5 75.1 1.5 6 12.5 121.5 0.91 1140 2,200 264,993 184 67.7 384.0 371.6 182.8 254.0 78.2 1.5 6 12.5 180.1 1.13 1150 2,000 368,686 203 108.0 453.1 371.8 183.9 269.2 106.9 1.5 6 12.5 230.0 1.95 1160 1,750 518,465 228 120.7 501.4 402.2 198.1 304.8 114.3 1.5 6 12.5 321.1 2.81 1170 1,600 691,286 279 133.4 566.4 437.8 215.9 355.6 119.4 1.5 6 12.5 448.2 3.49 1180 1,400 958,584 311 152.4 629.9 483.6 238.8 393.7 130.3 1.5 6 12.5 591.0 3.76 1190 1,300 1,267,358 339 152.4 675.6 524.2 259.1 436.9 135.0 1.5 6 12.5 761.0 4.40 1200 1,100 1,728,216 361 177.8 756.9 564.8 279.4 497.8 145.0 1.5 6 12.5 1,021.0 5.62 ※ Coupling 중량은 내경 가공이 없는 상태의 수치임. ※ Coupling weight, with unbored hub assembly.         사업자번호 : 140-08-66664　｜　주소 : 경기도 시흥시 계수동 100 TEL : 02-2060-1410　｜　FAX : 031-311-1409　｜　E-MAIL : avante2006@naver.com Copyright(c) 대영동력금속. All rights reserved.
